4-Gal. Vacuum Chamber with 1.5 CFM Vacuum Pump
Regular price$299.95
Tax included. Shipping calculated at checkout.

  • Free worldwide shipping
  • In stock, ready to ship
  • Backordered, shipping soon

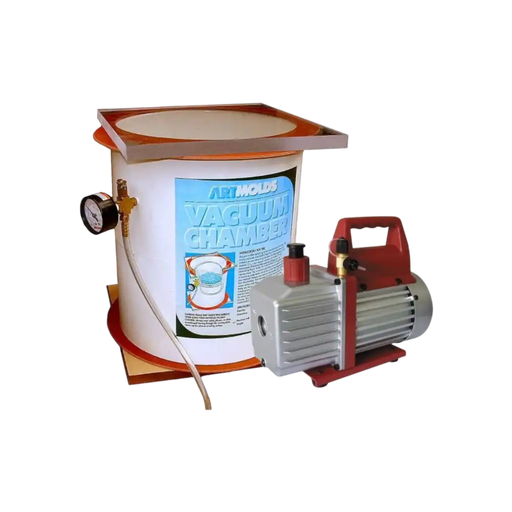

Vacuum Chamber System includes ArtMolds' 4-Gal. Vacuum Chamber and Matched 1.5 CFM Vacuum Pump.

ArtMolds Vacuum Chamber
To assure a bubble-free mold when mixing rubbers and silicones a vacuum chamber is required. The ArtMolds' Vacuum Chamber is designed for deairing (eliminating air bubbles) in rubbers. This PVC chamber, along with two ½-inch Lexan plates make a safe and efficient unit. The vacuum chamber comes with all fittings, exhaust valve, vacuum gauge, rubber gaskets, and top and bottom ½-inch clear Lexan plates.
Capacity:                4-gallons (approximately)
Dimensions:          10-inch diameter by 10-inch tall
Maximum Pull:      29.9-inches of mercury (Hg) at sea level                            24.87 hg at elevation of Denver, CO
Weight:                20-pounds / Shipping weight 22-pounds
1.5 CFM Vacuum Pump

Ultimate vacuum: 75 microns

Internal check valve to prevent escape of liquid oil

1/4 horsepower motor

Pump speed: 1720 RPM

Includes easily accessible oil fill port

This deep vacuum pump includes T-fitting with 1/4" flare and 1/2" ACME ports Vapor discharge/Oil fill port. Other features include: thermally protected motor with on/off rocker switch, high volume cooling fan provides cool air to motor and pump, large oil level sight glass with min-max. oil level indicator, large, lightweight reinforced base for stable positioning, cooling fins keep temperature cooler during extended motor operation and an easily accessible oil drain valve. Electrical specs: 110V / 60 Hz.
