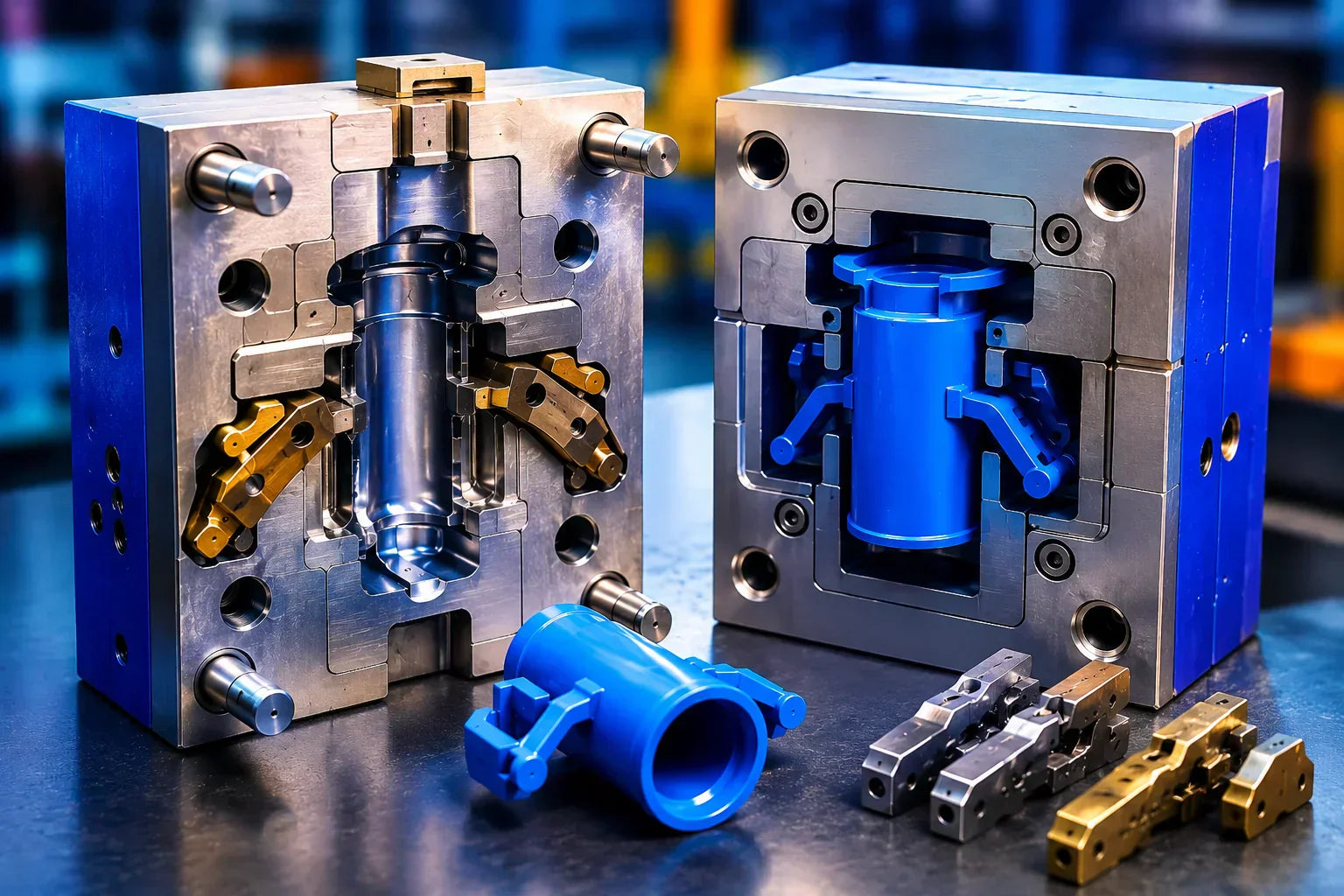

How to Handle Undercuts in Mold Making?

When handling undercuts in mold making, the focus should be on flexible materials like silicone for creating part molds, adding relief cuts, and modifying original mold design. These techniques do not allow the cast from getting trapped inside the mold and ensure smooth de-molding without damaging the final cast.

Undercuts in mold making are undoubtedly one of the major challenges. If you cannot handle it properly, it will remove the cast and damage the mold. Whether you are working with resin, silicone or industrial casting materials, knowing how to manage undercuts is essential for producing clean and reusable molds.

What are Undercuts and How Do They Matter?

Mold undercuts are those areas of a model where the mold material often lock around any feature and prevents easy removal of the cast. It typically occurs when parts of the model curve inward or extend outward in a way that traps the mold.

For example, figurines with arms close to the body, mechanical parts with grooves, or decorative items with deep textures often create undercuts. If the mold is made without proper planning for these areas, the cast remains stuck and the mold may tear during de-molding.

Why You Must Handle Undercuts Properly?

Handling undercuts correctly helps:

• Prevent mold tearing
• Maintain casting accuracy
• Extend mold lifespan
• Ensure easy de-molding

Professionals in fields like industrial design, product prototyping, sculpture, and resin crafts all plan molds carefully to manage these complex shapes.

How to Handle Undercuts in Mold Making?

Take a look at the most effective technique used for handling undercuts in mold making:

1. Use Flexible Silicone Molds

One of the easiest ways to handle undercuts is by using flexible silicone rubber molds. Silicone can stretch and release complex shapes without breaking.

This flexibility allows the mold to temporarily deform during de-molding and then return to its original shape, making it ideal for detailed or irregular designs.

2. Create Multi-Part Mold

During DIY mold making, undercuts may be too severe for a single mold and the best solution undoubtedly is creating a multi-part mold.

A two-part or three-part mold separates along strategic parting lines so each section can release easily from the cast. This method is widely used for complex sculptures, mechanical parts, and detailed prototypes. Proper planning of parting lines ensures that the mold pieces fit together perfectly during casting.

3. Add Relief Slits

For small undercuts, mold makers often add relief slits or cuts to the silicone mold design. These cuts allow the mold to open slightly when removing the cast. As silicone naturally closes back together, the cuts usually do not affect the final casting surface.

4. Fine-Tune the Original Model

Adjusting the model design before mold making offers the best solution sometimes. By reducing sharp inward angles or smoothing deep recesses, you can minimize problematic undercuts while maintaining the overall look of the object.

5. Use Mold Inserts or Cores

For hollow areas or internal undercuts, mold makers may use inserts or cores. These removable components create space inside the mold and can be taken out separately after casting. This method is common in industrial casting and large-scale production.

Conclusion

Handling undercuts is a crucial part of successful mold making. By identifying potential problem areas early and using techniques like flexible silicone molds, multi-part molds, relief cuts, or design adjustments, you can prevent casting defects and extend the life of your molds. From professional-grade silicone to advanced mold-making solutions, Environ Molds provides reliable products designed to handle complex shapes and undercuts with ease. Visit https://www.artmolds.com/ to order materials for mold making at home.

FAQs

Why are undercuts a problem in mold making?
Undercuts can trap the cast inside the mold, making de-molding difficult. If not handled properly, they may cause mold tearing, deformation, or damage to the final casting.

How do mold makers deal with undercuts?
Mold makers manage undercuts by using flexible silicone molds, creating multi-part molds, adding relief cuts, or modifying the model design to allow easier removal of the cast.

Can silicone molds handle undercuts?
Yes, silicone molds are highly flexible and can stretch slightly during de-molding. This flexibility allows them to release casts from areas with minor to moderate undercuts without breaking.

When should a multi-part mold be used?
A multi-part mold should be used when the model has deep or complex undercuts that cannot be released safely from a single-piece mold. Dividing the mold into sections allows easier casting and removal.
